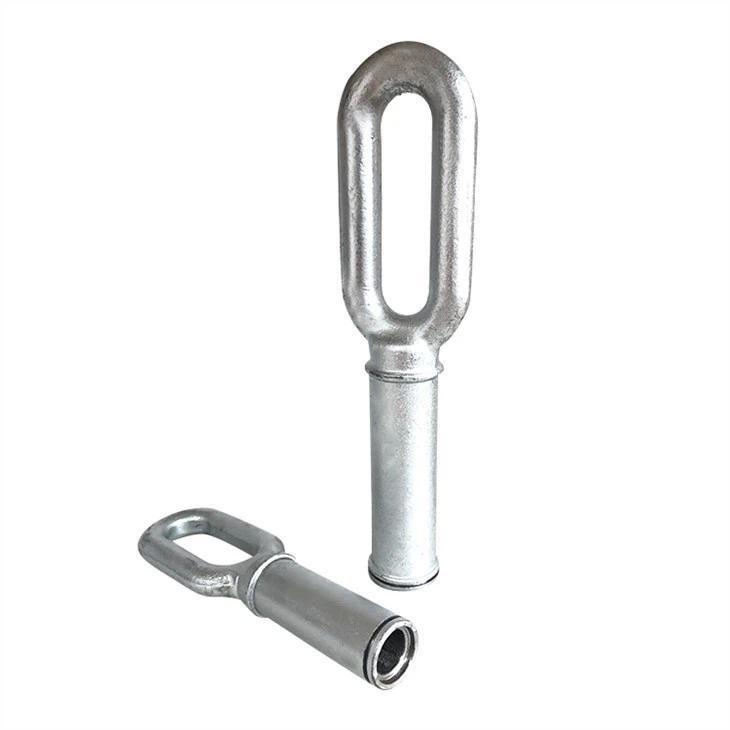

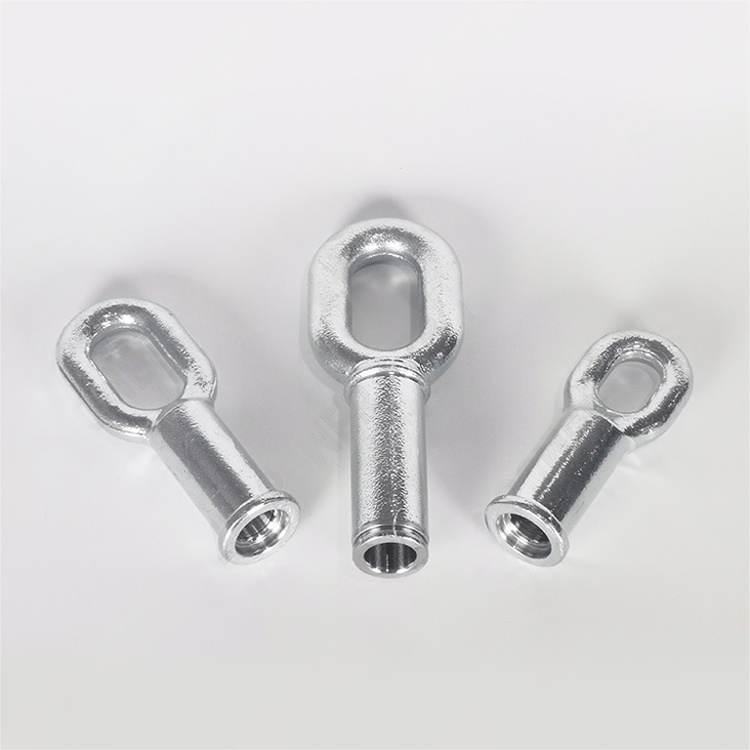

Oval Eye Fitting in composite insulator fittings is an important connecting part.
This product is made of high quality carbon steel with very stable mechanical properties, processed by mature forging process, high precision CNC lathe and mature hot dip galvanizing process, it has superior mechanical properties and smooth appearance.
Their structural design is simple and they have high strength and stiffness.
The product surface is specially treated, such as hot-dip galvanizing, and has good corrosion resistance, and can operate stably for a long time under various harsh environmental conditions.
Main Functions
1. Reliable connection
- The Oval eye fitting can firmly connect composite insulators with other power equipment such as towers and conductors, ensuring the stable operation of the entire power transmission system.
- With its special shape and structural design, the connection is tighter and not easy to loosen, and it can effectively withstand various external forces.
2. Load transfer
- During the operation of the power system, Oval eye fitting can evenly transfer the mechanical load borne by the composite insulator to the supporting structure such as towers.
- Whether it is tensile force, bending force or torsion force, Oval eye fitting can effectively bear it to ensure that the insulator will not be damaged due to overload.
3. Electrical conduction
- As a connecting part, the Oval eye fitting must have good electrical conductivity to ensure the smooth flow of current in the power system.
- It can effectively reduce contact resistance, reduce power loss and heat generation, and improve the efficiency and reliability of power transmission.
Product Features
1. High strength
- Made of high-strength materials and through strict heat treatment and processing technology, the Oval eye fitting is ensured to have sufficient strength and hardness.
- It can withstand mechanical stresses in various harsh environments and is not easy to deform or break.
2. Corrosion resistance
- The surface is treated with special anti-corrosion treatment, such as galvanizing, chrome plating, etc., and has good corrosion resistance.
- It can be used for a long time in harsh environments such as humidity and acid rain and is not easy to rust and corrode.
3. Convenient installation
- The design of the Oval eye fitting takes into account the convenience of installation. Usually, bolt connection or crimping is adopted, and the installation process is simple and quick.
- It can be adjusted and disassembled according to actual needs, which is convenient for maintenance and replacement.
Technical Specification
| Name Ovel Eye Fitting | |
| Material Forged Steel | Surface Treatment HDG |
| SML(kN) 40, 70, 100, 120, 160, 210 | Inner Diameter in Usual Practice(mm) 16, 18, 24 |
| Designated Size(IEC 60120: 2020) 17, 24, 25 | Executive Standard IEC 61466-1: 2016, IEC 60383-1:1993 |
